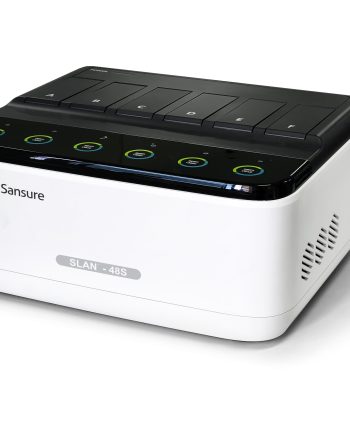

SureXler 48 Real-Time PCR Instrument
PCR InstrumentsBrief
SureXler, the avant-garde leader in real-time fluorescent quantitative PCR analysis, is designed for on-the-go testing. Its six independent modules with 8-channel system offer seamless multiplex testing, simplifying even the most complex procedures into effortless tasks. With a sleek and portable design that fits easily into your backpack, you are empowered to conduct molecular detection with unmatched ease and precision. Elevate your testing experience to a new level of convenience and efficiency today.

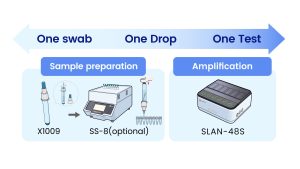

Manual Operation ＜ 1 min, Results in 38 mins
Revolutionary temperature control technology 1. Amplification takes only 38 minutes, approximately half the time of conventional PCR instruments. 2. It enables the rapid and accurate detection of gene expression variations as minimal as 1.5-fold.

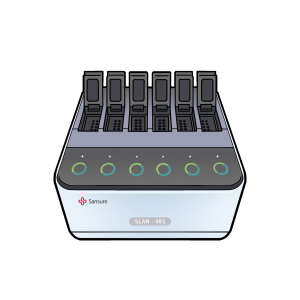

Flexible and independent modules
1. Each module is equipped with integrated temperature control system and heat lid, allowing for immediate testing upon arrival.
2. It serves as a gradient fluorescence PCR system and can simultaneously set 6 temperature and time gradients to compare amplification effects and identify the optimal reaction conditions, aiding in reagent development.

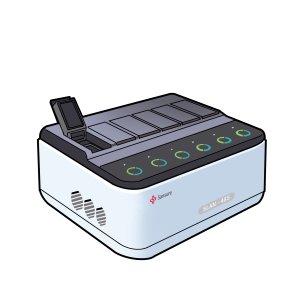

Smart Portable Design
1. Weighing under 10 kg, the instrument is one-third the weight of conventional thermal cyclers and can be carried in a backpack for molecular detection.
2. The instrument is operational without calibration after relocation.
3. Compatible with outdoor mobile power supplies for mobile detection.
Interoperable Open Platform
Compatible with various reagents, the device allows for customized experiments.
Eight-color fluorescence detection system
Detects up to 8 targets per well, enhancing efficiency.
Robust Software System
The software offers various analysis modes, including qualitative/absolute quantification, melt curve analysis, endpoint genotyping, HRM analysis, isothermal amplification, etc.
Specifications
Performance
Thermal SystemSample Capacity48 Well (6×8×0.2ml)Parallel Experiment6 reaction modules run up to 6 different experiments at the same time Consumables0.2ml PCR tubes, 4 strip tubesLight SourceHigh power Led (Maintenance Free)DetectorHigh sensitivity photoelectric sensorDynamic Range100 - 1010Sensitivity1 copyQuantitative RepeatabilityCV＜1.00%CorrelationIrI≥0.9990DNA concentration Differentiation1.5 fold (Difference between 1000 and 1500 copy)Sample Volume15μL - 100μLProbe/DyeChannel 1: FAM, SYBR-Green Channel 2:VIC, HEX, JOE, TET Channel 3: ROX, Texas Red Channel 4: CY 5 Channel 5: QUASAR705, CY5.5 Channel 6: ATTO425 Channel 7: CY7 Channel 8: AF405 *Channel 7 and Channel 8 can be customized according to user needs.
Working ConditionControl ModeFast/StandardTemperature Indication Error±0.1℃ Temperature Uniformity±0.1℃ Temperature Control Range4℃- 99℃Heating Rate Avg8℃/SecMaximum Heating Rate10℃/SecCooling Rate Avg6℃/SecMaximum Cooling Rate8℃/SecHot-lid30℃ - 120℃（Default 105℃, Adjustable) Auto Hot-lid Operating SystemWindows 7/8/10/11SoftwarePackaged project managementPower600WPower Input100 - 240VAC 50/60HzSize343mm×295mm×157mmWeight9kgInterfaceUSB -
iPonatic – Portable Molecule Workstation
mPOCT, PCR InstrumentsBrief
Innovations in molecular assays—especially on the point-of-care testing (POCT) front—have spread this testing from molecular diagnostics laboratories into clinical microbiology laboratories—and now into general laboratories and even clinics and exam rooms.[1] Access to sensitive and rapid infectious disease diagnostic assays is essential for accurate diagnosis, effective treatment, and timely infection control, making POCT vital to reducing TAT. With novel POCT on the horizon, future studies are warranted to determine cost savings, antimicrobial usage, TAT, patient impact, and how to best implement in non-microbiology clinical laboratories and clinics.[2] Sansure iPonatic (Portable Molecule Workstation) aims to innovate traditional diagnostic mode and assist precision diagnosis. It can provide quickly and convenient diagnosis experience for clinical emergency, health management, military safety, biological emergency and other applications.Core technologies
- Rapid nucleic acid lysis at room temperature within 1 minute
- Ultra fast amplification system in 8-45 minutes
- Integrated automatic data analysis software
- Results immediately printed by built-in printer
Performance
Diagnostic results consistent with international mainstream PCR instruments
Parameters
Model S-Q31A S-Q31B Detection platform Real-time PCR Detection module 1 amplification module 4 amplification modules Temperature control Liquid metal coated ceramic heating / Air cooling technology Heating rate ≥6.0℃ /s (from 50℃ to 95℃ ) Cooling rate ≥2.0℃ /s (from 95℃ to 50℃ ) Excitation light source LED Detector High sensitivity photodiode Applicable dyes FAM VIC ROX CY5 Sensitivity Can detect single copy gene Electrical specification AC 100-200V 50/60Hz Dimension 230×284×376 mm (L×W×H) 336.5 × 280 × 435 mm (L×W×H) Weight 9.7Kg 13Kg Qualification CE Test menu
Respiratory Infections : SARS-CoV-2, SARS-CoV-2/FluA/B, MP, ADV, BP.... HPV Infections : HrHPV, HPV 13+2, HPV 16/18, HPV 6/11.... Children's health : EBV, HCMV.... STIs : CT/UU/NG, CT, UU, NG, HSV-2.... Other test projects are under developmentReferences
[1]. Kozel TR, Burnham-Marusich AR. Point-of-care testing for infectious diseases: Past, present, and future. J Clin Microbiol 2017;55:2313-20.
[2]. Paige M.K. Larkin, Omai B. Garner. Molecular Point-of-Care Testing in Clinical Laboratories Laboratorians can lead a new era in rapid testing with expertise in quality control and result interpretation. Clinical Laboratory News. JUL.1.2020
-
MA-6000 Real-Time Quantitative Thermal Cycler
PCR InstrumentsBrief
The MA-6000 Real-Time Quantitative Thermal Cycler has spent many years in the research and development phase, but it was worth the wait as this advanced technology will help you treat more patients and cut down your waiting times with its ability to process up to 96 samples at one time. Our new Real-Time fluorescence quantitative PCR system MA-6000 is equipped with innovative hardware, structure and optimised software to deliver higher quality results.Features
Temperature Control Technology and Innovation MA-6000 employs a six independent temperature control module, associated with an infrared environmental scanning and monitoring system for temperature control and secured precision for the thermal block. A technologically designed thermal gradient customises twelve thermal conditions for multiple reaction actions in scientific research, maximising convenience for your research and scientific experiments. The MA-6000’s platinum sensor prevents temperature overshoot and undershoot, homogenised temperature variance which in tandem offer customers reliably excellent and repeatable data output. The World's Leading Optical Detection Technology’s Built-In Advantages A world leading technology of optical conduction and detection is applied to MA-6000. A highly functional heat-resistance optical fibre conducts full-spectrum halogen light source to samples without attenuation. The emission fluorescence signals are synchronously collected by monochrome CCD, which together with its cooling system, physically eliminate dark current on the detection array. MA-6000 ensures extraordinary detection sensitivity, extends the application of thermal cycler from nucleic acid to biotinylated protein and expands a brand-new path for multiplex diagnosis in clinical field.Specifications
PCR Module Sample capacity 96×200ul tubes / 12 x 8-well PCR strips / l x 96-well plate Temperature range 4-100 ℃ Maximum ramp rate 3.5 ℃/s for heating; 3.2℃/s for cooling Temperature accuracy ± 0. 1 ℃ Temperature uniformity ±0.25℃ Temperature monitoring method 6 independent zones for temperature surveillance Gradient capability Yes Excitation light source Full spectrum halogen lamp(5 years warranty) Excitation spectrum 380-780nm Excitation channels Built-in 6(including I extension channels) Fluorescence dyes/probes FAM / SYBR Green I / VIC / HEX / TET / Cy3 / Cy3.5 / JOE / Yellow 555 / ROX / Texas Red / Cy5 / Cy5.5 / LC Red / Tamara Detection channels 96 two-way heat-resistance optical fibers Data resolution 5.000-10.000 copies with 99.8% confidence; 1.5 times differentiation for single reaction Thermo Cycler Power supply 100-240V Frequency 50-60Hz Dimensions(WxHxD)(cm) 54.8×38.8×28.8 Weight 23kg Software Win7, Win8, Win10, etc. Qualification CE -
SLAN-96P Real-Time PCR System
PCR InstrumentsFeatures
Precise Temperature Control System: 1. The SLAN system adopts Peltier technology which can accurately and quickly control increases and decreases of temperature with a precision of ±0.1℃ and features long service life, no noise and no pollution, etc.; 2. Multiple-point temperature control technology ensures the uniformity between different wells. The temperature correction technology guarantees the accuracy of temperature and thus ensures the accuracy of assay result; 3. PCR tube temperature-control technology guarantees the accuracy of actual temperature of reagent in the tube and enables the SLAN to easily adjust for different reactions using different volumes. Sensitive Photoelectric Detection System 1. High sensitivity photoelectric detector with no background noise which is fast and stable; 2. Lifetime maintenance-free ultra-bright LED cold light source with a large signal value and high stability; 3. Unique optical fiber conduction technology that greatly improves fluorescence collection efficiency and avoids fluorescence interference between neighboring tubes; 4. The system automatically selects best gain value for each tube without the need for user configuration. The SLAN®has an extremely broad measuring range for fluorescence; 5. Extremely high detection sensitivity with an extremely low fluorescence background value. It's not necessary for users to make optical correction or background correction.
SLAN-96P Multi-tasking Software Interface (analysis screen)
Unique Electronic Automatic Hot Lid System 1. Flexible heating technology ensures uniform hot lid temperature; 2. The electronic automatic hot lid has an adjustment function for different 0.2ml reaction tubes to ensure even tube pressure; 3. Once the assay starts, the hot lid has automatic locking function to prevent assay failure following accidental opening. Other functions· Power-off protection · Automatic saving result · Export of result · Real-time data display · Quantitative and qualitative analysis · File encryption · Automatic baseline optimization · Digital filtering · Search function · Report sheet print and edit · Melt curve function Specifications
Product model SLAN-96P Sample capacity 96 wells (dual 48/48 reaction module) Sample size 15-50mL Consumable 0.2mL PCR tubes, 8-tube strips, 48-well plates Parallel running mode Dual reaction blocks/running 2 tests independently Temperature range 4-99°C Max ramp rate 4.0°C/sec Temperature accuracy ±0.1°C Temperature uniformity ±0.1°C Thermal cycling system Peltier-based system Temperature control mode Tube control/block control Light Source LED (maintenance-free) Detector High sensitivity photoelectric sensor Sensitivity 1 copy Linearity range 100-1010 Resolution Can discriminate between 1000 copies and 2000 copies Excitation CH1 470nm CH2 530nm CH3 580nm CH4 630nm CH5/CH6 custom-made Emission CH1 510nm CH2 565nm CH3 620nm CH4 665nm CH5/CH6 custom-made Dyes and probes CH1 FAMTM /SYBRGreen® CH2 VIC®/HEX/J0ETM /TET CH3 ROX/TexasRed® CH4 CY5TM Hot-lid 30°C~108°C (default105°C, adjustable) electronic automatic hot-lid Power supply 230VAC, 50Hz Power consumption 850VA Dimensions 380mm x 520mm x 250mm (WxDxH) Weight 18Kg Communication RS232, USB Qualification CE
